Heavy Duty Safety Switch, 200A, 600V, 3-Pole, NEMA 4X
Square D

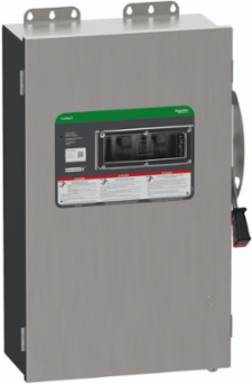

Square D VH364BDSGL Heavy Duty Safety Switch, 200A, 600V, 3-Pole, NEMA 4X

  • MPN: VH364BDSGL
  • PPN: SCH-VH364BDSGL
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Engineered for robust performance, this heavy-duty safety switch from Schneider Electric is designed to handle demanding industrial applications. With a 200A rating and capable of managing voltages up to 600V, its 3-pole configuration ensures reliable connectivity and protection in critical environments. The NEMA 4X enclosure provides superior resistance to water and dust, making it ideal for both indoor and outdoor use, while its durable construction guarantees longevity and effectiveness in safeguarding your electrical systems. This safety switch exemplifies quality and reliability, suited for those who prioritize safety and efficiency in their operations.

Documentation & Downloads

Specifications

Additional

Rated Current
200 A
Number of Poles
3
Short-Circuit Current
200 kA for J fuse
Device Application
Heavy application
Electrical Connection
Lugs
Wire Size
AWG 6 to 250 kcmil copper or aluminum
Mounting Type
Surface
Net Weight
25.85 kg (56.99 lb)
Enclosure Rating
NEMA 4X
Service Entrance
Suitable for Canada
RoHS Compliance
EU RoHS compliant, China RoHS X
Rated Operational Voltage600 V AC/DC
Fuse TypeJ
Duty RatingHeavy duty
Disconnect TypeFusible disconnect

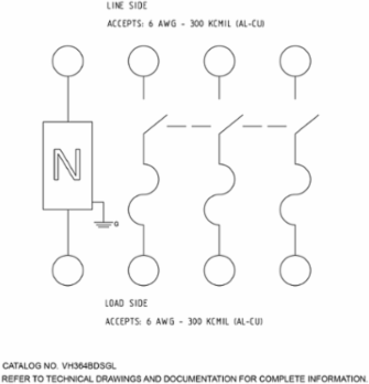

Wiring Configuration4-wire (3P + N)
Tightening Torque275 lbf.in (31.07 N.m)

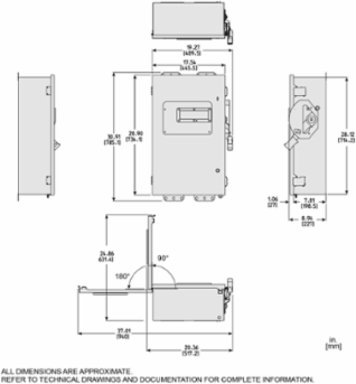

Dimensions (Depth x Width x Height)8.937 in x 17.474 in x 28.9 in
MaterialStainless steel 304
Factory Installed NeutralNeutral (factory bonded)
CertificationsUL listed (file E2875)
REACH ComplianceFree of SVHC above threshold
